Cabo de Potência Exavb 0, 6/1 Kv com Condutores de Cu, Isolado em XLPE e Revestido em PVC

Cabo de Potência Exavb 0, 6/1 Kv com Condutores de Cu, Isolado em XLPE e Revestido em PVC image

Get Latest Price Request a quote

Product Details

N ° de Modelo.

EXAVB

Atual

Cabo DC

Material de isolamento

XLPE

Bainha de materiais

PVC

Forma Material

Fio Redondo

Fio de material do núcleo

Fio de Cobre Vermelho

Certificação

ISO, CCC, sgs

Modelo

cabo de alimentação exavb

Marca

cabo hongda

padrão

iec 60502, nbn hd 603 parte 6

tensão nominal

600/1000 v.

blindado

armadura de fita de aço

adequado para

enterramento directo sem protecção mecânica extra

retardador de chamas

en 50575

Pacote de Transporte

tambor ou conforme o cliente precisar

Especificação

1,5 mm2 a 400 mm2

Marca Registrada

hongda

Origem

China

Código HS

8544492100

Capacidade de Produção

5 km/dia

Product Description

EXAVB Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

Application and Description

EXAVB is an armoured energy cable for low voltage installations of 0.6/1kV preventing a risk of mechanical damage.
The cable is UV resistant. EXAVB may be laid directly in the ground without additional mechanical protection, within facilities, in cable canals. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. The cable is suitable for use at ambient temperatures between -20°C and + 60°C. The safety circuit under the armour is suitable for grounding conductors.

EXAVB Power cable – Construction

Conductors: . Cu, class1 or 2 according to EN 60228
Insulation: XLPE compound
Bedding: Safety circuit with copper wires
Concentric conductor: Galvanized steel tapes or steel wires
Sheath: PVC compound, UV resistant

Conductor:	: rigid red copper / Aluminum wire, class 1 (Φ ≤ 4 mm²) stranded circular compacted copper / Aluminum class 2 (Φ>4mm²)
Insulation	: XLPE crosslinked polyethylene (no dry cool)
Outer sheath	: PVC
Screen	: no
Drain wire	: no
Lead sheath	: no
Concentric cond.	: none
Insulation integrity	: no
Circuit integrity	: no
Armouring	: Steel Tape Armoured

Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: IEC 60502-1, NBN HD 603 S1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable, Screened cables

Cable Parameter

Number of cores and size	Insulation thickness	Armour galv. round steel wires	Armour steel tape	Outer sheath thickness	Outer diameter	Weight of cable	max. resistance of the armour at 20 °C
mm2	mm	mm	mm	mm	approx. mm	approx. kg/km	Ω/km
2×1.5 re	0.7	1.2	—	1.8	13.5	360	12.1
2×2.5 re	0.7	1.2	—	1.8	14.5	415	7.41
2×4 re	0.7	1.2	—	1.8	15	480	4.61
2×6 re	0.7	1.2	—	1.8	16	570	3.08
2×10 re	0.7	1.2	—	1.8	17.5	720	2.40
2×16 rm	0.7	—	2×0.5	2.0	21	950	2.00
2×25 rm	0.9	—	2×0.5	2.0	25	1330	1.60
2×35 rm	0.9	—	2×0.5	2.0	27	1635	1.35
2×50 rm	1.0	—	2×0.5	2.0	30	2070	1.15
3×1.5 re	0.7	1.2	—	1.8	14	390	12.1
3×2.5 re	0.7	1.2	—	1.8	15	460	7.41
3×4 re	0.7	1.2	—	1.8	15.5	540	4.61
3×6 re	0.7	1.2	—	1.8	17	645	3.08
3×10 re	0.7	1.2	—	1.8	19	845	2.40
3×16 rm	0.7	—	2×0.5	2.0	23	1120	2.00
3×25 rm	0.9	—	2×0.5	2.0	26	1575	1.60
3×35 rm	0.9	—	2×0.5	2.0	29	1965	1.35
3×50 rm	1.0	—	2×0.5	2.0	33	2600	1.15
3×70 sm	1.1	—	2×0.5	2.2	33	2870	1.00
3×95 sm	1.1	—	2×0.5	2.2	36	3735	0.90
3×120 sm	1.2	—	2×0.5	2.2	39	4485	0.80
3×150 sm	1.4	—	2×0.7	2.4	44	5715	0.75
3×185 sm	1.6	—	2×0.7	2.6	49	7010	0.70
3×240 sm	1.7	—	2×0.7	2.8	54	8825	0.65
3×300 sm	1.8	—	2×0.7	3.0	59	10880	0.60
3×16 rm + 1×10 re*	0.7/0.7	—	2×0.5	2.0	24.0	1260	2.00
3×25 rm + 1×16 rm	0.9/0.7	—	2×0.5	2.0	27.0	1580	1.60
3×35 rm + 1×16 rm	0.9/0.7	—	2×0.5	2.0	30.0	1910	1.35
3×35 rm + 1×25 rm	0.9/0.9	—	2×0.5	2.0	30.0	2020	1.35
3×50 rm + 1×25 rm	1.0/0.9	—	2×0.5	2.2	33.0	2535	1.15
3×70 sm + 1×35 rm	1.1/0.9	—	2×0.5	2.2	35.0	3265	1.00
3×95 sm + 1×50 rm	1.1/1.0	—	2×0.5	2.2	39.0	4280	0.90
3×120 sm + 1×70 rm	1.2/1.1	—	2×0.7	2.4	44.0	5565	0.80
3×150 sm + 1×70 rm	1.4/1.1	—	2×0.7	2.6	48.0	6540	0.75
3×185 sm + 1×95 rm	1.6/1.1	—	2×0.7	2.8	53.0	8095	0.70
3×240 sm + 1×120 rm	1.7/1.2	—	2×0.7	3.0	59.0	10165	0.65
3×300 sm + 1×150 rm	1.8/1.4	—	2×0.7	3.2	64.0	12700	0.60
3×300 sm + 1×185 rm	1.2/1.1	—	2×0.7	3.2	66.0	13135	0.60
4×1.5 re	0.7	1.2	—	1.8	14.5	435	12.1
4×2.5 re	0.7	1.2	—	1.8	15.5	515	7.41
4×4 re	0.7	1.2	—	1.8	16.5	610	4.61
4×6 re	0.7	1.2	—	1.8	18.0	740	3.08
4×10 re	0.7	1.2	—	2.0	20.0	985	2.40
4×16 rm	0.7	—	2×0.5	2.0	24.0	1340	2.00
4×25 rm	0.9	—	2×0.5	2.0	28.0	1695	1.60
4×35 rm	0.9	—	2×0.5	2.0	31.0	2130	1.35
4×50 rm	1.0	—	2×0.5	2.2	35.0	2800	1.15
4×70 sm	1.1	—	2×0.5	2.2	37.0	3620	1.00
4×95 sm	1.1	—	2×0.5	2.4	41.0	4810	0.90
4×120 sm	1.2	—	2×0.7	2.4	46.0	6075	0.80
4×150 sm	1.4	—	2×0.7	2.6	51.0	7385	0.75
4×185 sm	1.6	—	2×0.7	2.8	55.0	9055	0.70
4×240 sm	1.7	—	2×0.7	3.0	62.0	11600	0.65
4×300 sm	1.8	—	2×0.7	3.4	68.0	14400	0.60
5×1.5 re*	0.7	1.2	—	1.8	15.5	485	12.1
5×2.5 re*	0.7	1.2	—	1.8	16.5	580	7.41
5×4 re*	0.7	1.2	—	1.8	17.5	700	4.61
5×6 re*	0.7	1.2	—	1.8	19.0	845	3.08
5×10 re*	0.7	1.2	—	2.0	22.0	1180	2.40
5×16 rm*	0.7	—	2×0.5	2.0	26.0	1565	2.00
5×25 rm*	0.9	—	2×0.5	2.0	31.0	2225	1.60
5×35 rm*	0.9	—	2×0.5	2.0	36.0	2995	1.35
5×50 rm*	1.0	—	2×0.5	2.2	41.0	3915	1.15
5×70 rm*	1.1	—	2×0.7	2.2	47.0	5480	1.00

Tehnical characteristics
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
Min. laying temperature: 5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Operating temperature: -20°C to 60°C

Packing & Shipping:

Why Choose Us ?

1. We have a large production base, and advanced production equipment

2. Have an competitive price and high quality

3. Excellent after-sale service

4. Free issue:packaging list,invoice

5. Powerful technology team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.

10.We have a good reputation in the overseas

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,

it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance,70% T/T balance before shipment

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact Vivian Yuan , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.

Nós somos China Cabo de Potência Exavb 0, 6/1 Kv com Condutores de Cu, Isolado em XLPE e Revestido em PVC fabricação e fornecedor,Você pode obter mais detalhes com e-mail, você obterá preço barato ou preço de fábrica.

Get Latest Price Request a quote

Tags: 6/1 Kv com Condutores de Cu, Exavb, Henan Hongda Cable Co., Isolado em XLPE e Revestido em PVC, Ltd., Power Cable

Cabo de Potência Exavb 0, 6/1 Kv com Condutores de Cu, Isolado em XLPE e Revestido em PVC

You May Like

Cabo de Potência Isolado em XLPE Ecológico para Projetos Sustentáveis

Cabo de Mineração UL Cabo de Borracha Cabo de Reboque Cabo de Potência Tipo W Tipo G G-Gc Shd-Gc

Cabo de Alta Tensão Industrial 450mm Deadend de Pré-forma Zebra 75mm2 Condutor de Alumínio ACSR

Padrão ASTM Dália Visco Prímula Orquídea Heuchera Condutor Aéreo Nu

24 Núcleo 37 Núcleos Flexíveis 0.75mm2 1mm Cabo de Controle Multicore

600V 16 mm 25mm 35mm 50mm Lista de Preços de Cabos de Alumínio ABC e Cabos Aéreos Agrupados de Alumínio

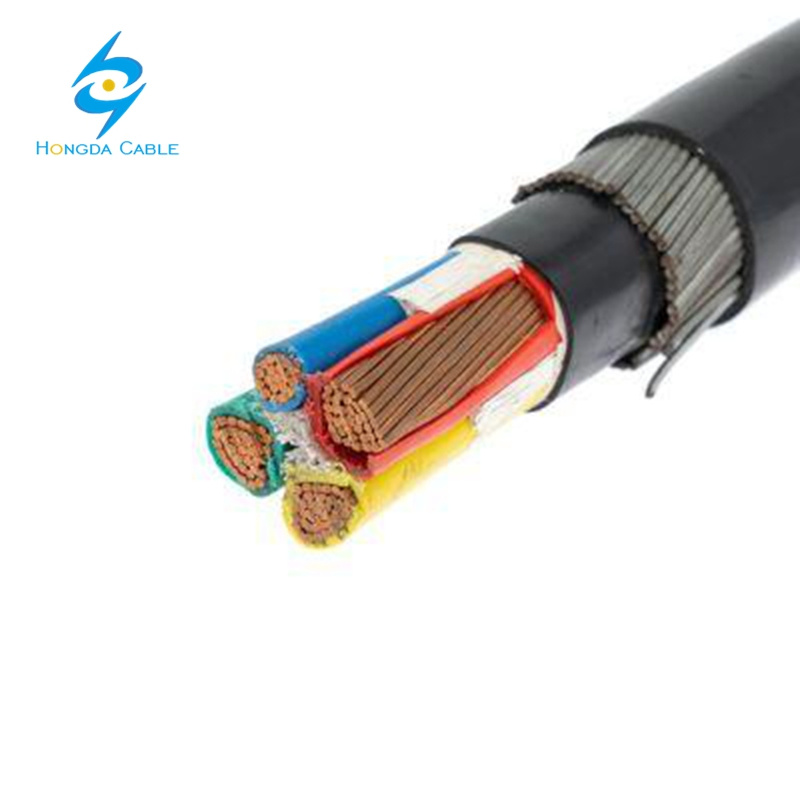

0.6/1kv 4X70mm2 Cabo de Construção Subterrânea Não Armado ou Armado Sta/Swa
