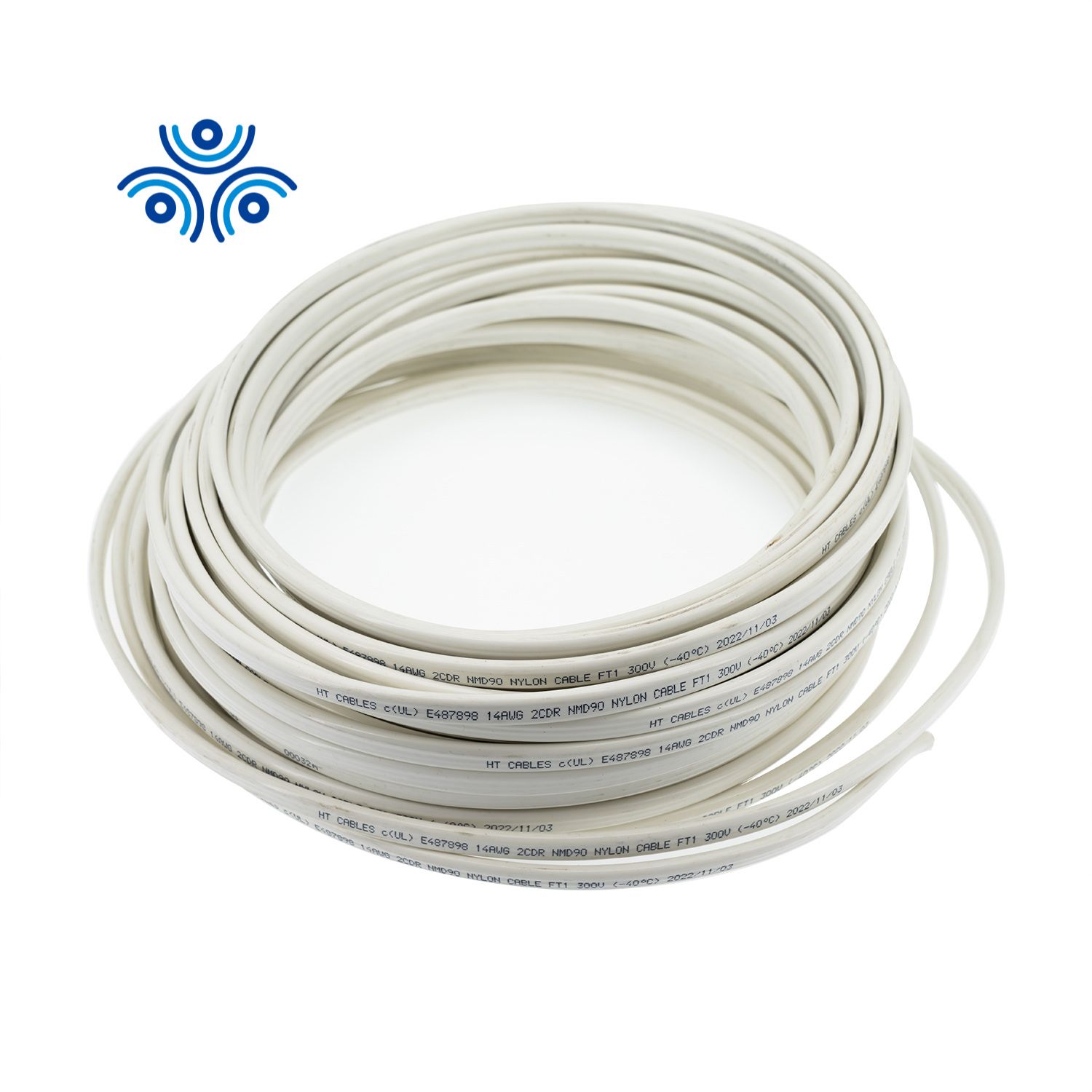

Cabo de Cobre Sólido AWG CSA e cUL 12/2 Nmd90 14-2 Fio

Cabo de Cobre Sólido AWG CSA e cUL 12/2 Nmd90 14-2 Fio image

Get Latest Price Request a quote

Product Details

N ° de Modelo.

NMD90

Aplicação

Aquecimento, edifício

Material do condutor

Cobre

Bainha de materiais

PVC

Material de isolamento

PVC

Forma Material

Fio Plano

Faixa de Aplicação

condutas ou vias reconhecidas para serviços

Certificação

ISO9001, CE, CCC, RoHS, VDE

Marca

huatong

tensão

300V

utilização

edifício

certificado

cúl e csa

pacote

tambores de plástico e de madeira

Pacote de Transporte

bobinas e tambores

Especificação

14 awg, 12 awg, 10 awg, 8 awg, 6 awg

Marca Registrada

cabos de alta tensão

Origem

China

Código HS

8544492100

Capacidade de Produção

200000m/mês

Product Description

The largest CUL UL cable expert manufacturer in China

First factory in NMD90, TECK90, RPV90 mass production factory

Annual Export amount more than $500million, Yearly manufacturing capacity 5 Billion RMB.

Cable solutions to your particular requirements
Strict quality control system.
Strong technical support (technical data, drawing, etc.)
Free sample is available with economic express fee.

A P P L I C A T I O N S

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.

The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further

information related to applications.

CONSTRUCTION

Canada standard C22.2 No. 48 (non-metallic sheathed cable)

Canadian Electrical Code1

NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is

manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a

heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.

SPECIFICATION

Conductor			Insulation		Ground		Approx. Jacket thickness		Approx. Cable Dia.		Approx. Cable weight		Allowable Ampacities 30°C
Size (AWG)	Cores	Strands	Inches	mm	Size (AWG)	Core	Inches	mm	Inches	mm	Ib/ 1000ft	Kg/ km
14	2	1	0.034	0.86	14	1	0.030	0.76	0.388*0.192	9.86*4.88	68	101	25*
14	2	1	0.034	0.86	14	1	0.030	0.76	0.388 x 0.192	9.86 x 4.88	68	101	25*
12	2	1	0.034	0.86	14	1	0.030	0.76	0.422 x 0.209	10.71 x 5.30	86	129	30*
10	2	1	0.034	0.86	12	1	0.030	0.76	0.481 x 0.230	12.21 x 5.84	122	182	40*
8	2	7	0.040	1.02	10	1	0.045	1.14	0.636 x 0.312	16.15 x 7.92	208	310	55
6	2	7	0.051	1.30	8	7	0.045	1.14	0.792 x 0.370	20.12 x 9.40	315	468	75
14	3	1	0.034	0.86	14	1	0.030	0.76	0.345	8.77	86	128	25*
12	3	1	0.034	0.86	14	1	0.030	0.76	0.381	9.69	114	169	30*
10	3	1	0.034	0.86	12	1	0.030	0.76	0.427	10.85	163	242	40*
8	3	7	0.040	1.02	10	1	0.045	1.14	0.570	14.47	275	408	55
6	3	7	0.051	1.30	8	7	0.045	1.14	0.695	17.65	421	627	75
3	3	7	0.051	1.30	6	7	0.080	2.03	0.925	23.48	799	1189	115
